WhisperKOOL Platinum Split 8000 ductless wine cellar cooling system with your choice of 110V ΩMEGA H.E. or 220V Advanced H.E. condenser.
$7,995.00
24V Thermostat Conversion Kit (No Bottle Probe / KDT):
WhisperKOOL Condenser:
WK Omega Duct Kit:
WK Omega Exterior Housing (Required Outdoors):
WK Condenser Coil Coating:
The WhisperKOOL Platinum Split 8000 is a ductless split wine cellar cooling system designed to provide reliable cooling performance while maintaining a quiet, discreet presence inside the wine cellar.
The evaporator mounts inside the wine cellar, while the remote condenser can be positioned up to 100 feet away, providing greater flexibility when planning the location of the cooling equipment. This configuration allows the cooling system to adapt to a variety of residential and commercial wine cellar installations.
The Platinum Split 8000 is available with your choice of a 110V ΩMEGA H.E. Condenser or 220V Advanced H.E. Condenser, allowing you to select the configuration that best fits your electrical service, condenser location, and installation requirements.

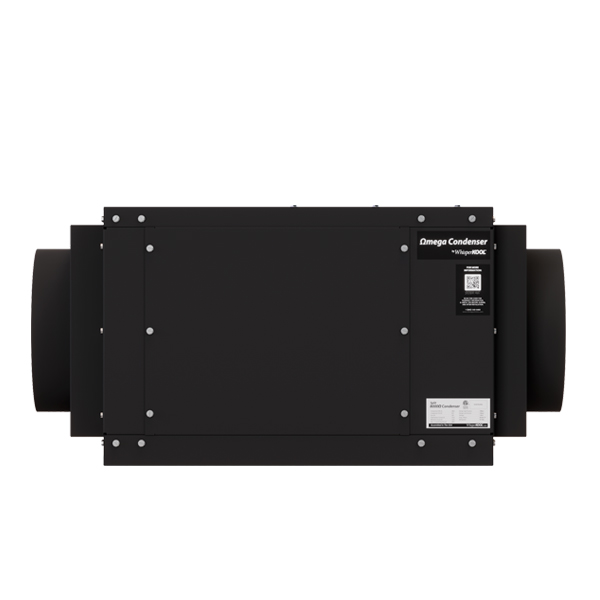

The 110V ΩMEGA H.E. Condenser provides a flexible electrical configuration for installations where 110V power is preferred or required. The ΩMEGA condenser is designed for high-efficiency performance and flexible installation options when paired with the appropriate accessories.

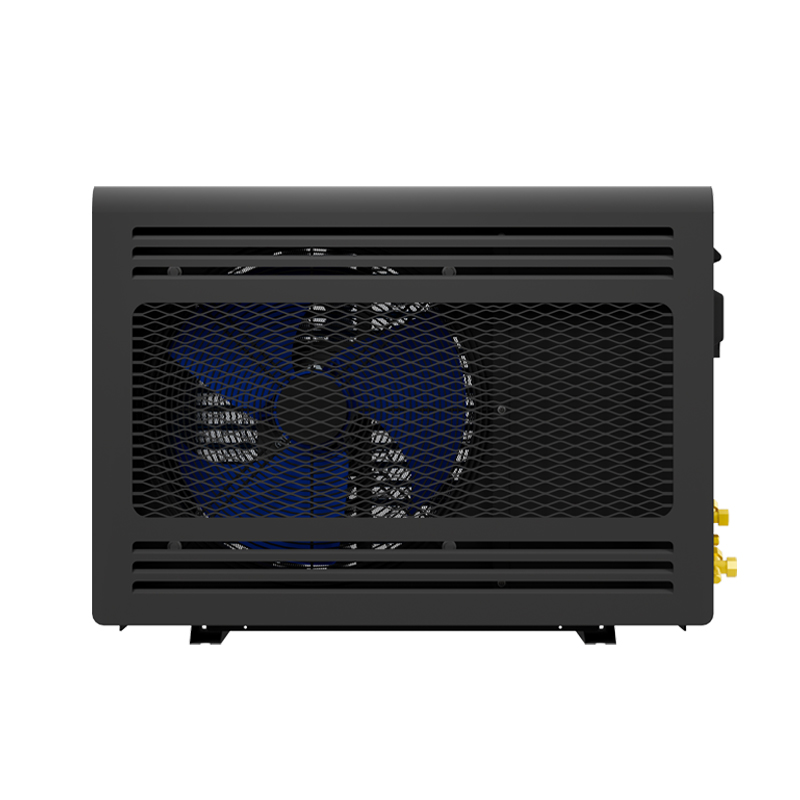

The 220V Advanced H.E. Condenser is designed for high-efficiency performance, ultra-quiet operation, simplified installation, and reliable operation across a wide range of ambient conditions, including extreme climates from −20°F to 120°F. WhisperKOOL also highlights enhanced durability, serviceability, and consistent performance across a wide range of environments.
Professional HVAC-R installation is required. Failure to have the Platinum Split 8000 installed by a qualified HVAC-R technician will void the warranty.
The optional 24V Thermostat Conversion Kit changes the standard control configuration. The standard WhisperKOOL control and liquid-temperature-measuring bottle probe are not included with this configuration.
A compatible 24V thermostat must be supplied by the customer. WhisperKOOL does not provide technical support for third-party smart thermostats.
The Platinum Split 8000 system includes the WhisperKOOL evaporator unit and your selected condenser configuration. The evaporator is installed inside the wine cellar, while the remote condenser can be positioned up to 100 feet away, depending on the installation requirements.
Flexible 110V condenser configuration for installations where 110V power is preferred or required. Appropriate accessories are available for applicable indoor or outdoor installations.
220V high-efficiency condenser designed for outdoor installation and operation across a wide range of ambient conditions.
Allows the system to be operated with a customer-supplied compatible 24V thermostat. The standard WhisperKOOL KDT control and liquid-temperature-measuring bottle probe are not included with this option.
Optional UV-C lighting system for the evaporator.
Optional duct kit for applicable indoor ΩMEGA condenser installations.
Required when the ΩMEGA condenser is installed outdoors.
Optional protective coating for the condenser coil.
The line set is not included with the Platinum Split 8000 system. Line-set requirements and other installation materials should be determined by the qualified HVAC-R professional based on the specific installation.
The Platinum Split 8000 has a theoretical cooling capacity range of 3,576–4,834 BTU/h on the current WhisperKOOL product page. Actual cooling requirements can vary depending on the design, construction, insulation, ambient conditions, and other heat-producing elements of the wine cellar.
Factors such as glass, stone, concrete, insulation, ambient temperature, cellar location, lighting, and other heat-producing elements can increase the cooling load beyond the theoretical calculation.
We recommend selecting a cooling system with sufficient capacity to compensate for these variables. An undersized unit may run excessively, may not be able to maintain the desired cellar temperature, and can contribute to premature system failure.
For the most accurate system selection, a wine cellar heat-load calculation should be performed before ordering.
If you are unsure which system is appropriate for your wine cellar, contact Wine Appreciation before ordering.
Choosing between the 110V ΩMEGA H.E. and 220V Advanced H.E. condenser depends on the available electrical service, condenser location, installation environment, and project requirements.
The Platinum Split 8000 provides installation flexibility with the evaporator mounted inside the wine cellar and the remote condenser positioned up to 100 feet away.
If you're working on a new wine cellar or replacing an existing cooling system, contact Wine Appreciation before ordering. We can help determine which WhisperKOOL configuration is appropriate for your project.
The 110V ΩMEGA H.E. Condenser provides a flexible electrical configuration for installations where 110V power is preferred or required. WhisperKOOL describes the ΩMEGA as a high-performance, high-efficiency condenser designed for diverse applications and environmental conditions.
The 220V Advanced H.E. condenser is specifically described by WhisperKOOL as being designed for high-efficiency performance, ultra-quiet operation, simplified installation, enhanced durability and serviceability, and reliable operation from −20°F to 120°F.
Important: Final condenser selection should be based on the available electrical service, planned condenser location, environmental conditions, and the requirements of the specific installation. Professional HVAC-R installation is required.
 |  |
110V ΩMEGA H.E. Condenser | 220V Advanced H.E. Condenser |
| Voltage: 110V–120V | Voltage: 220V |
| System: Platinum Split 8000 | System: Platinum Split 8000 |
| Condenser Placement: Flexible placement; indoor or outdoor with the appropriate accessories | Condenser Placement: Designed for outdoor installation |
| Installation Options: Closet, attic space, crawl space, concrete pad, under-the-stairs, or other suitable locations | Installation Options: Concrete pad, wall-mounted, roof-mounted, or other suitable outdoor location |
| Key Benefits: High-efficiency performance, flexible placement, ultra-quiet operation, and adaptable installation options | Key Benefits: High-efficiency performance, ultra-quiet operation, built-in diagnostics, enhanced durability, and serviceability |
| Operating Environment: Refer to the current ΩMEGA installation documentation for applicable ambient-temperature requirements | Operating Environment: Designed for reliable operation from −20°F to 120°F |
Specification | Details |
| System Type | Ductless Split Wine Cellar Cooling System |
| Evaporator Location | Mounted Inside Wine Cellar |
| Condenser Options | 110V ΩMEGA H.E. / 220V Advanced H.E. |
| Condenser Location | Remote — Up to 100 Feet From Evaporator |
| BTU/h Rating | 3,576–4,834 BTU/h |
| Temperature Differential | Up to 55°F |
| Controller | WhisperKOOL KDT Digital Controller |
| Temperature Sensor | Liquid-Temperature-Measuring Bottle Probe |
| Evaporator Coil | E-Coated |
| Installation | Professional HVAC-R Installation Required |
Note: Cooling capacity, dimensions, electrical requirements, refrigerant, line-set requirements, and other technical specifications can vary by condenser configuration. Refer to the current WhisperKOOL specification sheet and installation manual for the selected configuration.
The Platinum Split 8000 consists of an evaporator unit installed inside the wine cellar and a remote condensing unit that can be positioned up to 100 feet away, depending on the installation requirements.
Dimensions: 16.1" L × 20.5" W × 15.5" H
Weight: Approximately 54 lbs.
Dimensions: 31.18" L × 10.75" W × 21.18" H
Weight: Approximately 56 lbs.
Allow adequate clearance around both the evaporator and condenser for proper airflow, service access, and maintenance. Actual clearance requirements depend on the selected condenser configuration and installation location.
Important: Verify the current WhisperKOOL installation manual for required clearances before installation. Dimensions and installation requirements may vary depending on the selected condenser and optional accessories
The 110V ΩMEGA H.E. Condenser provides a flexible electrical configuration for installations where 110V power is preferred or required.
The ΩMEGA condenser offers flexible installation options and can be configured for appropriate indoor or outdoor installation using the required accessories.
Depending on the installation, available accessories may include:
Select the appropriate condenser and accessories based on the planned installation environment, available electrical service, and project requirements.
The 220V Advanced H.E. Condenser is designed to provide high-efficiency performance, ultra-quiet operation, simplified installation, and reliable operation across a wide range of ambient conditions.
The Advanced H.E. condenser is available as an option for the Platinum Split 8000 and is designed for demanding wine cellar applications and a wide range of environmental conditions.
24V Thermostat Conversion Option
The Platinum Split 8000 can be ordered with an optional 24V Thermostat Conversion Kit.
Selecting the 24V conversion changes the standard control configuration. The standard WhisperKOOL KDT control and liquid-temperature-measuring bottle probe are not included with this configuration.
A compatible 24V thermostat must be supplied by the customer.
Important: Compatibility with third-party thermostats should be confirmed before ordering. Wine Appreciation and WhisperKOOL do not provide technical support for third-party smart thermostat programming or operation.
The WhisperKOOL Platinum Split 4000 is designed for wine cellar applications where reliable cooling performance and flexible installation are important. Actual cooling requirements depend on the specific heat load of the wine cellar.
Factors that can affect cooling requirements include:
For the best results, a heat-load calculation should be performed before selecting a cooling system. Proper sizing is essential for maintaining the desired wine cellar temperature and a suitable wine-storage environment. An undersized system may run excessively, may not maintain the desired cellar temperature, and can contribute to premature system failure.
If you are unsure which WhisperKOOL system is appropriate for your cellar, contact Wine Appreciation before ordering.
The Platinum Split 4000 is designed for professional installation.
The evaporator is installed inside the wine cellar, while the remote condenser can be positioned up to 100 feet away from the evaporator, depending on the installation requirements.
Installation should be performed by a qualified HVAC-R professional familiar with ductless split refrigeration systems. WhisperKOOL requires installation by a qualified HVAC-R technician, and failure to have the system professionally installed will void the warranty.
The 110V ΩMEGA condenser provides flexible installation options when 110V electrical service is preferred or required.
Depending on the installation, available accessories may include:
Select the appropriate condenser accessories based on the planned installation environment, available electrical service, and project requirements.
The 220V Advanced H.E. condenser is designed for outdoor installation and operation across a wide range of ambient conditions.
Installation options include:
The Advanced H.E. condenser is designed for demanding wine cellar applications and operates across an ambient range of −20°F to 120°F.
For the most current owner manuals, installation documentation, product specifications, warranty information, and warranty requirements, please contact WhisperKOOL directly. Manufacturer documentation and warranty requirements may be updated as products and configurations change. Wine Appreciation recommends confirming the applicable documentation and warranty requirements with WhisperKOOL before installation.
