Compact wine cellar cooling system with flexible ducted, ductless, or hybrid airflow configurations.
24V Thermostat Conversion Kit (No Bottle Probe / KDT):
WK Condenser:
WK Omega Duct Kit:
WK Omega Exterior Housing (Required Outdoors):
WK Omega Condenser Coil Coating:
WK Airflow Configuration:
The WhisperKOOL Mini Blow-Through is a compact split wine cellar cooling system designed to provide reliable cooling performance with flexible installation options for wine cellar projects where space is limited.
The evaporator can be installed in a variety of tight or concealed locations, including wine walls, built-in cabinetry, soffits, and other space-constrained areas. The remote condenser can be positioned separately from the evaporator, providing additional flexibility when planning the location of the cooling equipment.
The Mini Blow-Through offers your choice of ducted, ductless, or hybrid airflow configurations, allowing the system to be adapted to different wine cellar layouts and installation requirements.

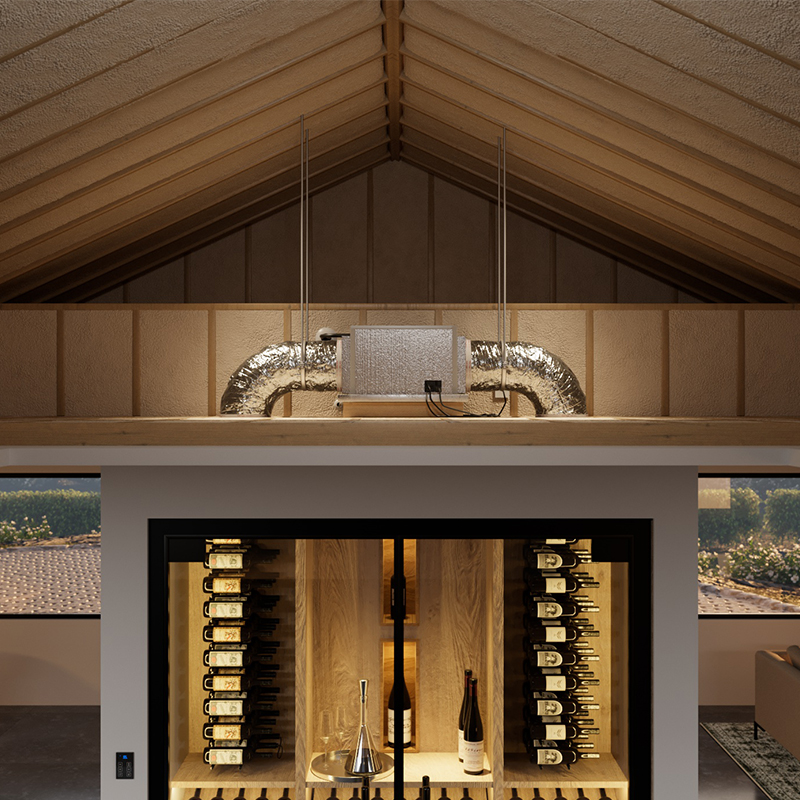

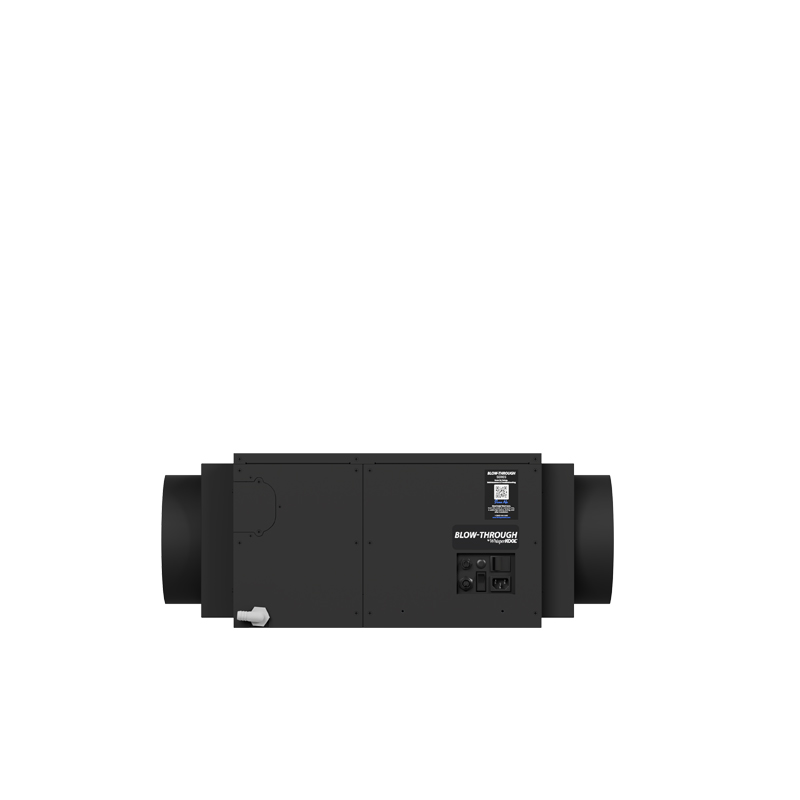

The ducted configuration uses two duct plenums to direct conditioned air into and out of the wine cellar. This configuration provides greater flexibility when the cooling unit needs to be concealed or when conditioned airflow needs to be directed to specific locations.

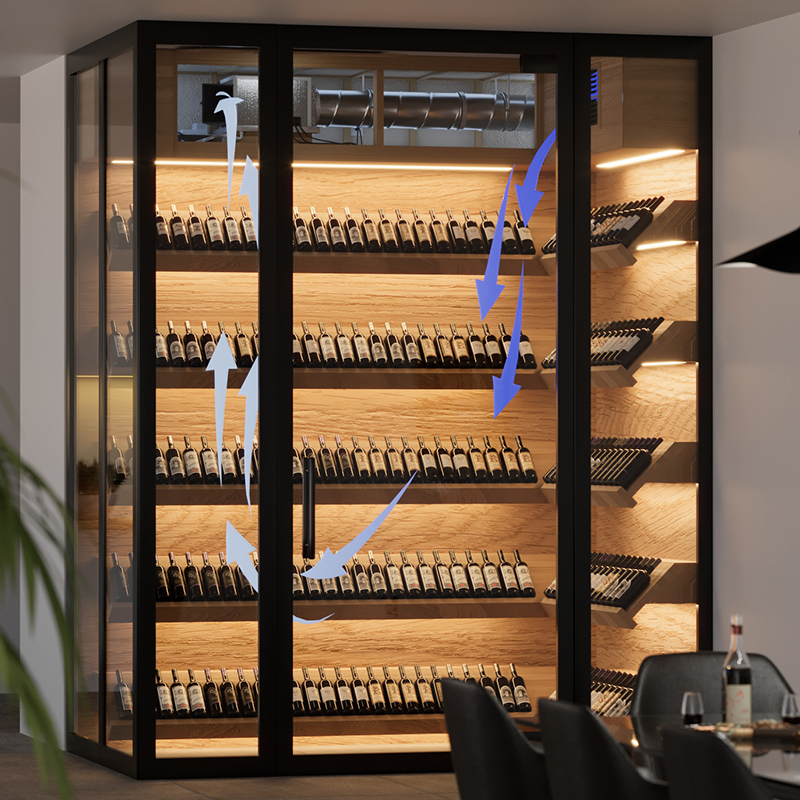

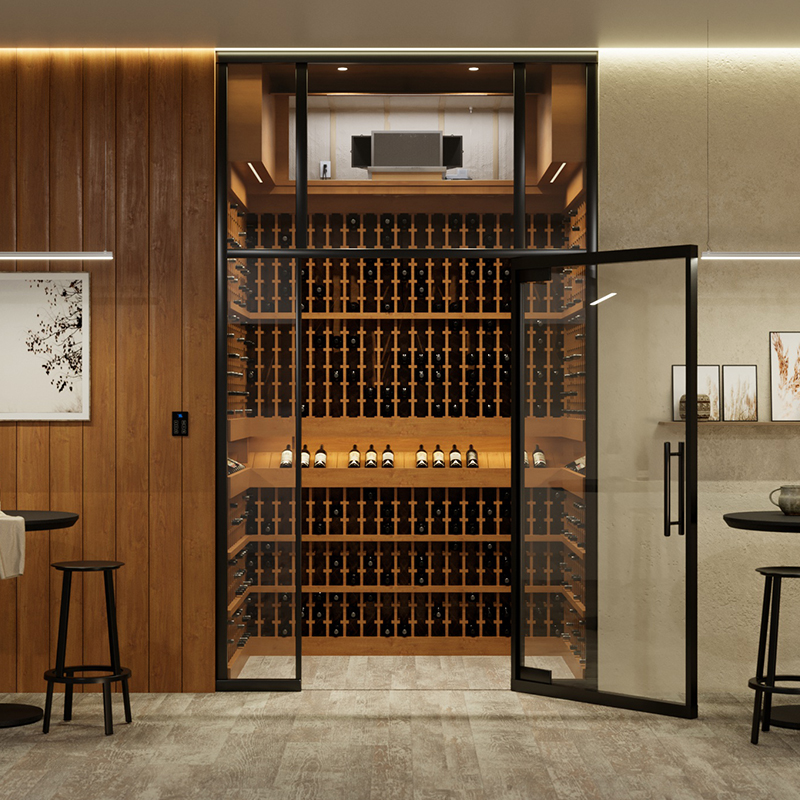

The ductless configuration uses two airflow deflectors to deliver conditioned air directly into the wine cellar. This option is well suited to installations where the evaporator can be positioned within or adjacent to the cellar without requiring ductwork.
The hybrid configuration combines one duct plenum with one airflow deflector, providing a combination of ducted and direct airflow. This option can be useful when the installation requires greater flexibility in how air is distributed.
The 110V H.E. ΩMEGA Condenser provides a flexible electrical configuration for installations where 110V power is preferred or required. The ΩMEGA condenser can be used for appropriate indoor or outdoor installations when paired with the required accessories.
The 220V Advanced H.E. Condenser provides an alternative electrical configuration for installations requiring 220V power. It is designed for high-efficiency performance and reliable operation across a wide range of ambient conditions.
Professional HVAC-R installation is required. Failure to have the system installed by a qualified HVAC-R technician will void the warranty.
24V Thermostat Option: The optional 24V Thermostat Conversion Kit changes the standard control configuration. The standard WhisperKOOL KDT control and liquid-temperature-measuring bottle probe are not included with this option. A compatible 24V thermostat must be supplied by the customer. WhisperKOOL does not provide technical support for third-party smart thermostats.
California Residents: PROPOSITION 65 WARNING

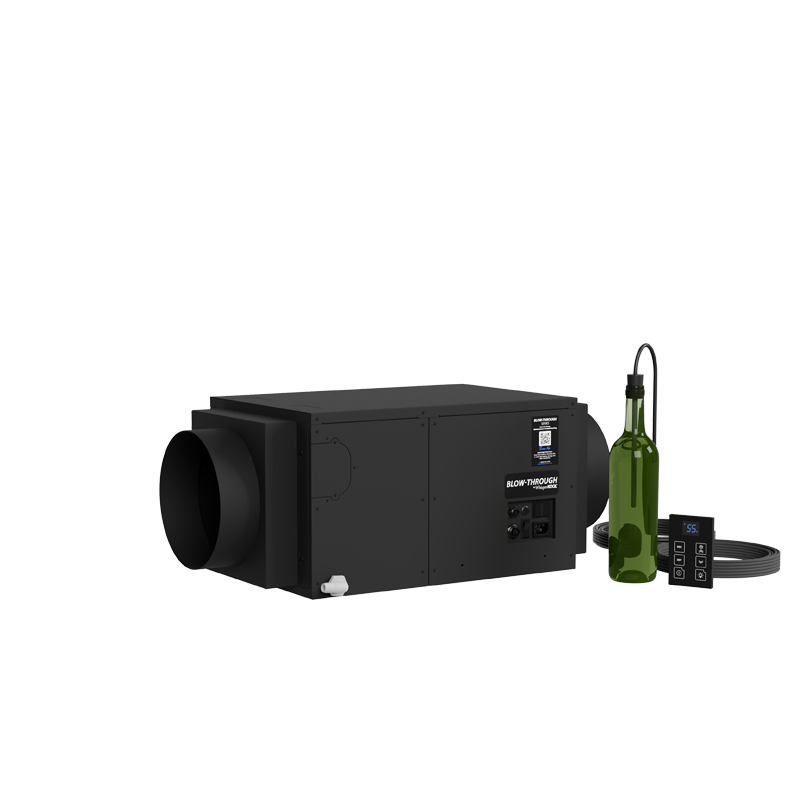

*Ducted: 2 duct plenums

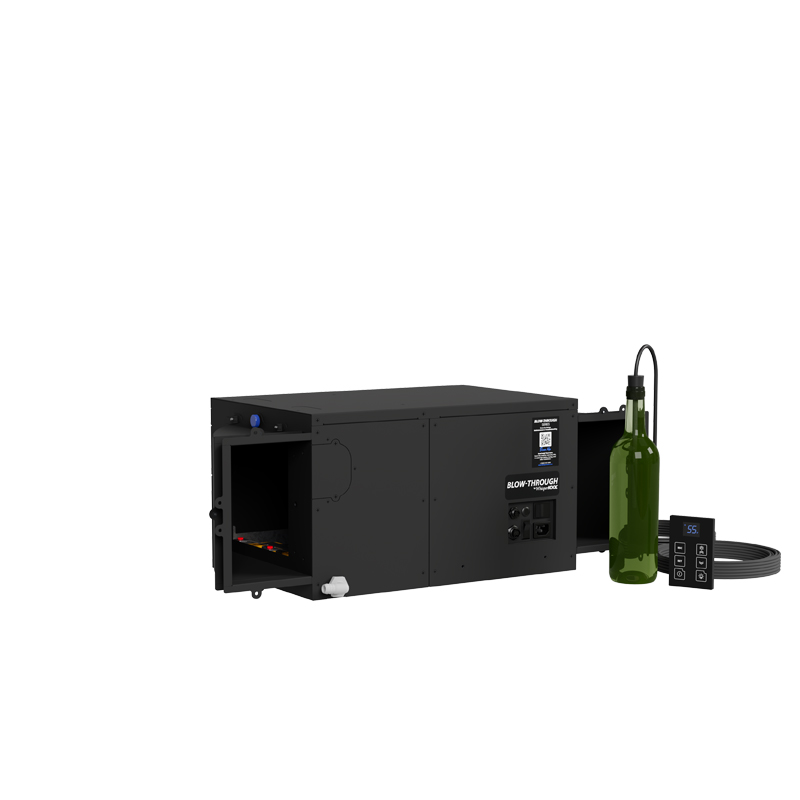

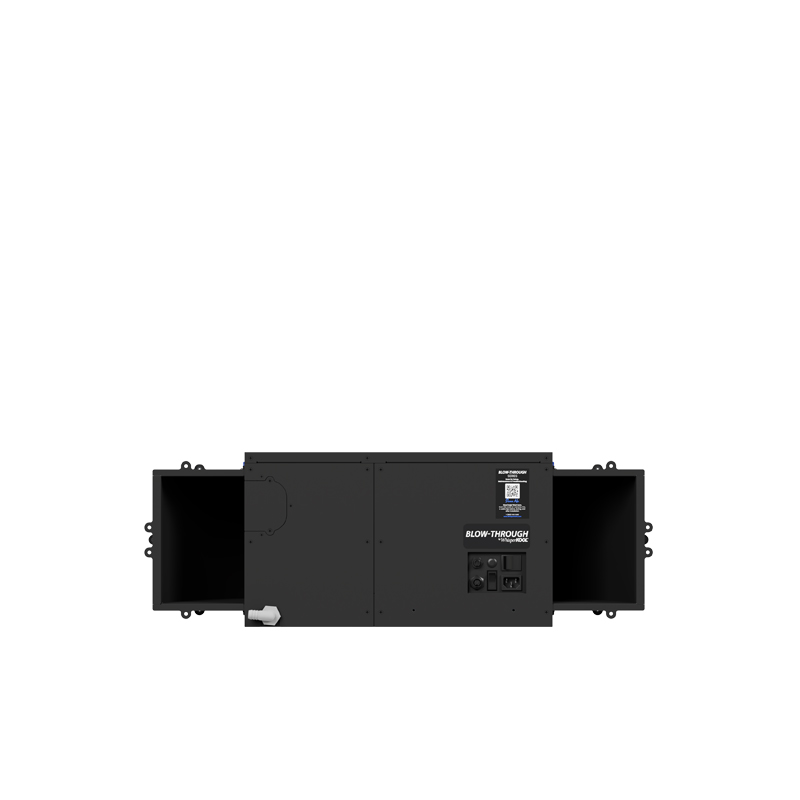

*Ductless: 2 airflow deflectors
*Hybrid: 1 duct plenum and 1 airflow deflector
Please Note: The line set is not included and must be purchased separately. Selecting the optional 24V Thermostat Conversion Kit removes the standard WhisperKOOL control and liquid-temperature-measuring bottle probe; a compatible 24V thermostat must be supplied by the customer.
Professional HVAC-R installation is required.
The WhisperKOOL Mini Blow-Through provides approximately 2,442–3,288 BTU/h at 60°F ambient, depending on the selected condenser configuration.
Cooling capacity varies with ambient temperature and condenser configuration. For the Mini, current manufacturer performance data shows:
The BTU/h values shown above are manufacturer-rated performance figures. Actual cooling requirements can vary depending on the specific design and construction of the wine cellar.
Factors such as glass, stone, concrete, insulation, ambient temperature, cellar location, and other heat-producing elements can increase the cooling load beyond the theoretical calculation.
We recommend selecting a cooling system with sufficient capacity to compensate for these variables. An undersized unit may run excessively, may not be able to maintain the desired cellar temperature, and can contribute to premature system failure.
If you are unsure which system is appropriate for your wine cellar, contact Wine Appreciation before ordering.
Choosing the right WhisperKOOL Mini Blow-Through configuration depends on your wine cellar layout, available electrical service, airflow requirements, condenser location, and installation environment.
The Mini Blow-Through gives you flexibility with ducted, ductless, or hybrid airflow configurations, allowing the system to be adapted to different wine cellar designs and installation requirements. You can also choose between the 110V H.E. ΩMEGA condenser and 220V Advanced H.E. condenser.
If you're working on a new wine cellar or replacing an existing cooling system, contact Wine Appreciation before ordering. We can help determine which WhisperKOOL configuration is appropriate for your project.
110V H.E. ΩMEGA | 220V Advanced H.E. |
|---|---|
| Voltage: 110V | Voltage: 220V |
| System: WhisperKOOL Mini Blow-Through | System: WhisperKOOL Mini Blow-Through |
| Condenser Placement: Flexible placement; indoor or outdoor installation depending on configuration and required accessories | Condenser Placement: Designed for outdoor installation |
| Installation Options: Suitable for a variety of installation locations when installed according to manufacturer requirements | Installation Options: Suitable for concrete pad, wall-mounted, roof-mounted, or other appropriate outdoor installation |
| Key Benefits: 110V electrical service, high-efficiency performance, and flexible installation options | Key Benefits: High-efficiency operation, quiet performance, and reliable operation across a wide range of ambient conditions |
| Operating Environment: Installation requirements vary depending on condenser location and accessories | Operating Environment: Designed for reliable operation in ambient temperatures from −20°F to 120°F |
Professional HVAC-R installation is required.
Specification | Blow-Through Mini Wine Cellar Cooling System |
|---|---|
| System Type | Blow-Through Split Wine Cellar Cooling System |
| Airflow Configurations | Ducted, Ductless, or Hybrid |
| Condenser Options | 110V H.E. ΩMEGA / 220V Advanced H.E. |
| BTU/h Rating | 2,442–3,288 BTU/h at 60°F ambient, depending on condenser configuration |
| Duct Run | Up to 25 feet for fully ducted applications |

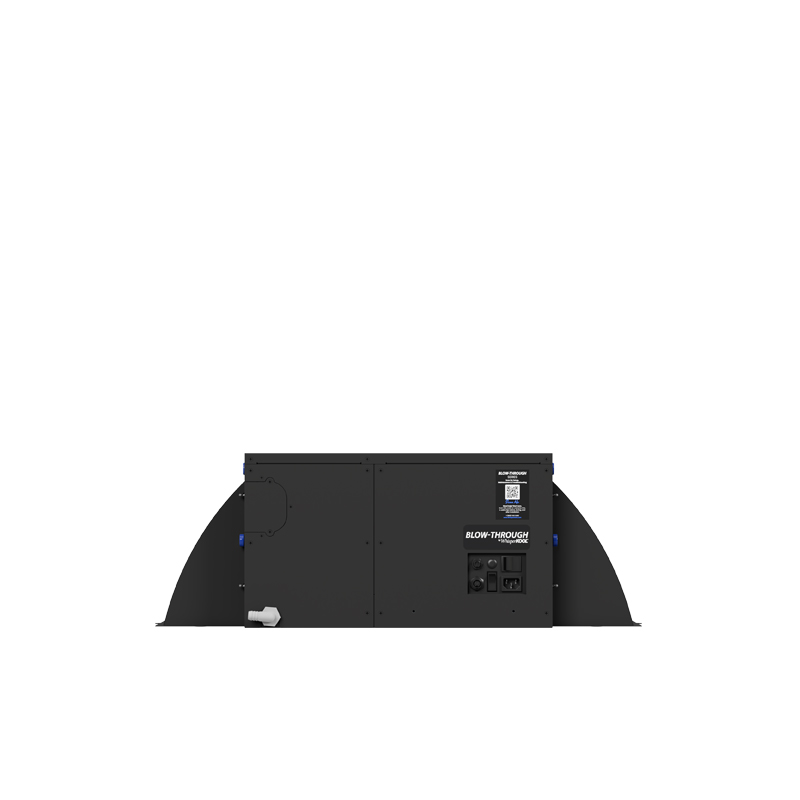

| Airflow Direction | Ductless airflow can be directed left, right, or downward |
| Controller | WhisperKOOL KDT Digital Touch Display |
| Temperature Sensor | Liquid-Temperature-Measuring Bottle Probe |
| Condensate Management | Built-in condensate pump with float-switch overflow protection |
| Drain Line | 1/4" drain line |
| Service Access | Dual-side service access |

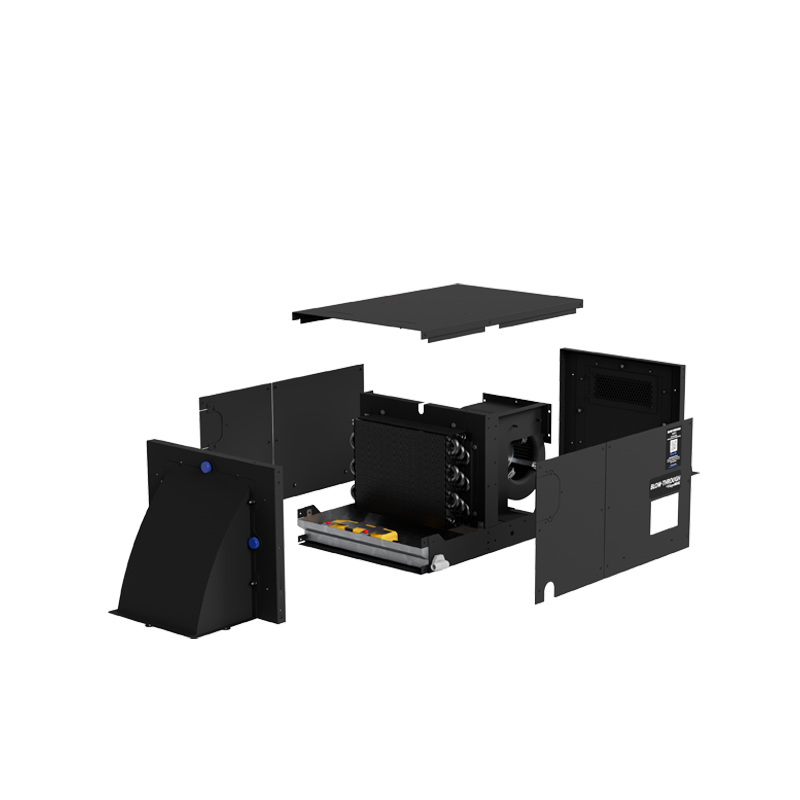

| Evaporator Coil | Removable coil design |
| Installation | Professional HVAC-R Installation Required |
| Warranty | Two-year limited warranty with up to an additional one-year grace period for installation |
Ducted: 27.5" L × 12.5" W × 10.5" H
Ductless: 30.18" L × 12.5" W × 10.5" H
Hybrid: 28.84" L × 12.5" W × 10.5" H
Note: Cooling capacity and other technical specifications can vary depending on the selected condenser configuration and operating conditions. Refer to the current WhisperKOOL specification sheet and installation documentation for the selected configuration.
Each wine cellar is unique and has specific cooling requirements. A heat-load calculation should be performed before selecting a cooling system.
The 110V ΩMEGA H.E. Condenser provides a flexible electrical and installation option for WhisperKOOL Blow-Through systems where 110V power is preferred or required.
The ΩMEGA condenser can be installed in a variety of locations, including closets, attic spaces, crawl spaces, under-stair areas, and other suitable locations. Outdoor installations require the ΩMEGA Exterior Condenser Housing for additional weather protection.
Depending on the planned installation, available accessories include:
The Blow-Through Series also includes an exterior insulation kit, which is recommended for attic or other high-temperature installations.
Select the appropriate condenser and accessories based on the planned installation environment, airflow requirements, and available electrical service.
For more information about the ΩMEGA 110V H.E. Condenser and Blow-Through Series, see the current WhisperKOOL documentation and application resources.
The 220V Advanced H.E. Condenser is WhisperKOOL's high-efficiency condenser option for the Blow-Through Series, designed for outdoor installation and demanding wine cellar applications.
The Advanced H.E. condenser is engineered for reliable operation across a wide ambient-temperature range and incorporates features designed to improve efficiency, protection, diagnostics, and serviceability.
The Advanced H.E. condenser is compatible with the WhisperKOOL Mini Blow-Through and is designed for outdoor installation without requiring the ΩMEGA exterior housing.
The Mini Blow-Through can be ordered with an optional 24V Thermostat Conversion Kit.
Selecting the 24V conversion changes the standard control configuration. The standard WhisperKOOL KDT control and liquid-temperature-measuring bottle probe are not used with this configuration.
A compatible 24V thermostat must be supplied by the customer.
Important: WhisperKOOL does not provide a smart thermostat. Customers selecting the 24V Thermostat Conversion Kit are responsible for sourcing a compatible 24V thermostat. Compatibility should be confirmed before ordering. WhisperKOOL does not provide technical support for third-party smart thermostat programming or operation.
The WhisperKOOL Platinum Mini Split is designed for smaller wine cellar applications, with a reference cellar size of approximately **500 cu. ft. when the cellar is fully insulated and sealed with a proper vapor barrier**.
Actual cooling requirements depend on the specific heat load of the cellar. Factors such as glass doors, insulation, ambient temperature, cellar location, construction materials, lighting, and other heat-producing equipment can affect the required cooling capacity.
A heat-load calculation should be performed before selecting a cooling system.
Factors that can affect cooling requirements include:
For the best results, perform a heat-load calculation before selecting a cooling system. Proper sizing is essential for maintaining the desired wine cellar temperature and humidity environment.
If you are unsure which WhisperKOOL system is appropriate for your cellar, contact Wine Appreciation before ordering.
The WhisperKOOL Mini Blow-Through is designed for professional HVAC-R installation and provides flexible installation options for wine cellar projects where space is limited.
The evaporator can be installed in concealed or space-constrained locations such as soffits, built-in cabinetry, wine walls, and other suitable areas. The selected airflow configuration—ducted, ductless, or hybrid—should be determined based on the cellar layout and installation requirements.
Follow current WhisperKOOL requirements for ducting, clearances, electrical connections, condensate management, condenser placement, and system configuration.
A qualified HVAC-R professional should perform the installation, including refrigerant connections, evacuation, charging, electrical connections, condensate management, and system commissioning.
The 110V ΩMEGA condenser provides flexible installation options and may be installed in locations such as:
For indoor condenser installations, the ΩMEGA Condenser Ducting Kit is required.
For outdoor condenser installations, the ΩMEGA Exterior Condenser Housing is required.
The 220V Advanced H.E. condenser is designed for outdoor installation and does not require an exterior condenser housing.
Installation options include:
Concrete pad
Wall mounted
Roof mounted
The Advanced H.E. condenser is designed to operate in ambient temperatures from -20°F to 120°F and incorporates features for cold-ambient and high-ambient operation.
Professional HVAC-R installation is required. Always refer to the current WhisperKOOL installation manual and technical documentation for specific installation requirements before beginning the installation.
For the most current owner manuals, installation documentation, product specifications, warranty information, and warranty requirements for the WhisperKOOL Mini Blow-Through, please refer to the manufacturer's current documentation or contact WhisperKOOL directly.
Manufacturer documentation and warranty requirements may be updated as products, configurations, and installation requirements change. Wine Appreciation recommends confirming the applicable documentation and warranty requirements with WhisperKOOL before installation.
Professional HVAC-R installation is required. Always follow the current WhisperKOOL installation instructions and applicable local building and mechanical codes.
